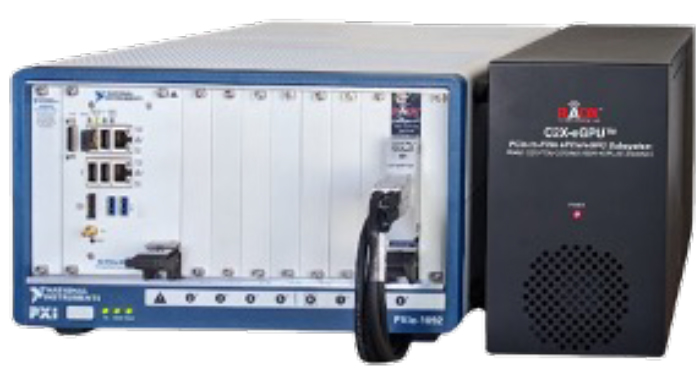

RADX Orca-C2X™ COTS PXIe eGPUs & PCIe-to-PXIe Subsystem Kits
Enables Extreme Performance NVIDIA GPUs and FHFL, 1- or 2-Slot, PCIe Add-In-Cards (AICs) to Operate Seamlessly & Transparently in PXIe Systems with Full (Unshared) PXIe BW (up to 16 GB/Sec)
- Full (Unshared) PXIe Bandwidth to PCIe Devices – Unlike Remote Control (MXIe) Systems, where PXIe Devices Share 4, 8 or 16 Lanes to the External Host PC, Orca-C2x provides up to 8 Dedicated PCIe G3/G4 Lanes between the PCIe AIC and the PXIe Backplane / Embedded Controller. In G3 x8 PXIe Systems (e.g., NI PXIe-1092 & PXIe-8881), Orca-C2X supports > 7.5 GB/Sec, Full Duplex.
- Thunderbolt Not Required – With Orca-C2X, add ANY PCIe device to virtually ANY PXIe System, eliminating the need for Embedded Controllers with Thunderbolt. Plus, with its PCIe G3/G4 x8 I/F and up to 8/16 GB/Sec, Orca-C2X delivers 3x to 6x the Thunderbolt 3 Bandwidth (~2.5 GB/Sec).
- Low-Latency – With its Re-Driver technology, Orca-C2X latency is typically less than 200 picoseconds for Host and Target Adapters (combined) and ~5 ns for a 1m cable (one-way).
- Seamless and Transparent Operation – With Orca-C2X, PCIe Add-In-Cards operate as if they are directly on the Host PXIe System Backplane in the, so operation is transparent and seamless under Windows or Linux Operating Systems – without Impact to Device Drivers or Application Software.
- Engineered for PCIe, OS & App Compatibility – Orca-C2X features Advanced PCIe Re-drivers with Linear Equalization for optimal PCIe compatibility with a wide range of PCIe devices.
- Futureproof – Orca-C2X supports PCIe G4 x8 to for upgrades to 16 GB/Sec Full Duplex when deployed in PXIe Systems with PCIe G4/G5 Backplanes and Embedded Controllers.
- Flexible – Orca-C2X supports Unmodified Customer Provided and Integrated (or Consigned and RADX Integrated) PCIe Add-In-Cards:
- Full Height, Full Length (FHFL) and Single-Slot or Dual-Slot PCIe G3/G4 x1, x2, x4, x8 or x16
- Up to ~500W via PCIe Bus Power and DC Connectors
- PXIe-C2X-G3/G4x8-500W-eGPU-AdaRTX6000 with Integrated NVIDIA Ada RTX 6000 (48 GB GDDR6, 91.1 FP32 TFLOPS, 300W) – see https://tinyurl.com/y3npf4fw (Blackwell Pro coming soon!)
- PXIe-C2X-G3/G4x8-500W-ePCIe-SK PXIe-to-PCIe Subsystem Kit for 3rd Party Integration
- 1 x PCIe-C2X-G3/G4x16-E1-500W Enclosure with PCIe G3/G4 x16 Backplane for Target Adapter and 2-Slot, FHFL, ≤ 500W PCIe Add-In-Card, 600W PSU & Cooling, and Power Cable
- 1 x PCIe-C2X-G4x8-TA Target Adapter – Integrated in C2X E1-500W Enclosure.
- 1 x PXIe-C2X-G4x8-HA Host Adapter – for Integration in Customer’s PXIe System.
- 1 x PXIe-C2X-G4x8-CK-X PCIe G4 x8 Cable Kit with 2 x SFF-8674 2×1 Cables (1m Std).
- Optional First Article & Recurring RADX Integration of Customer Consigned PCIe AICs
